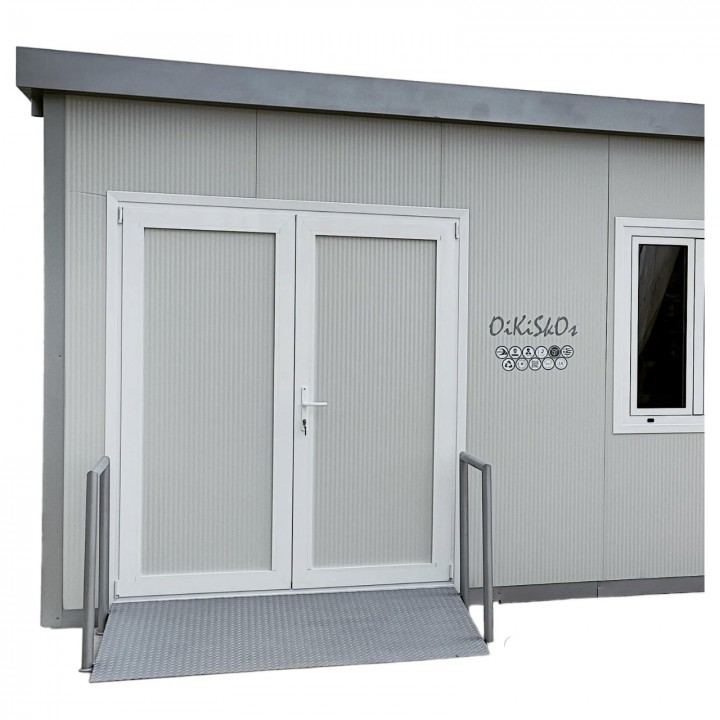

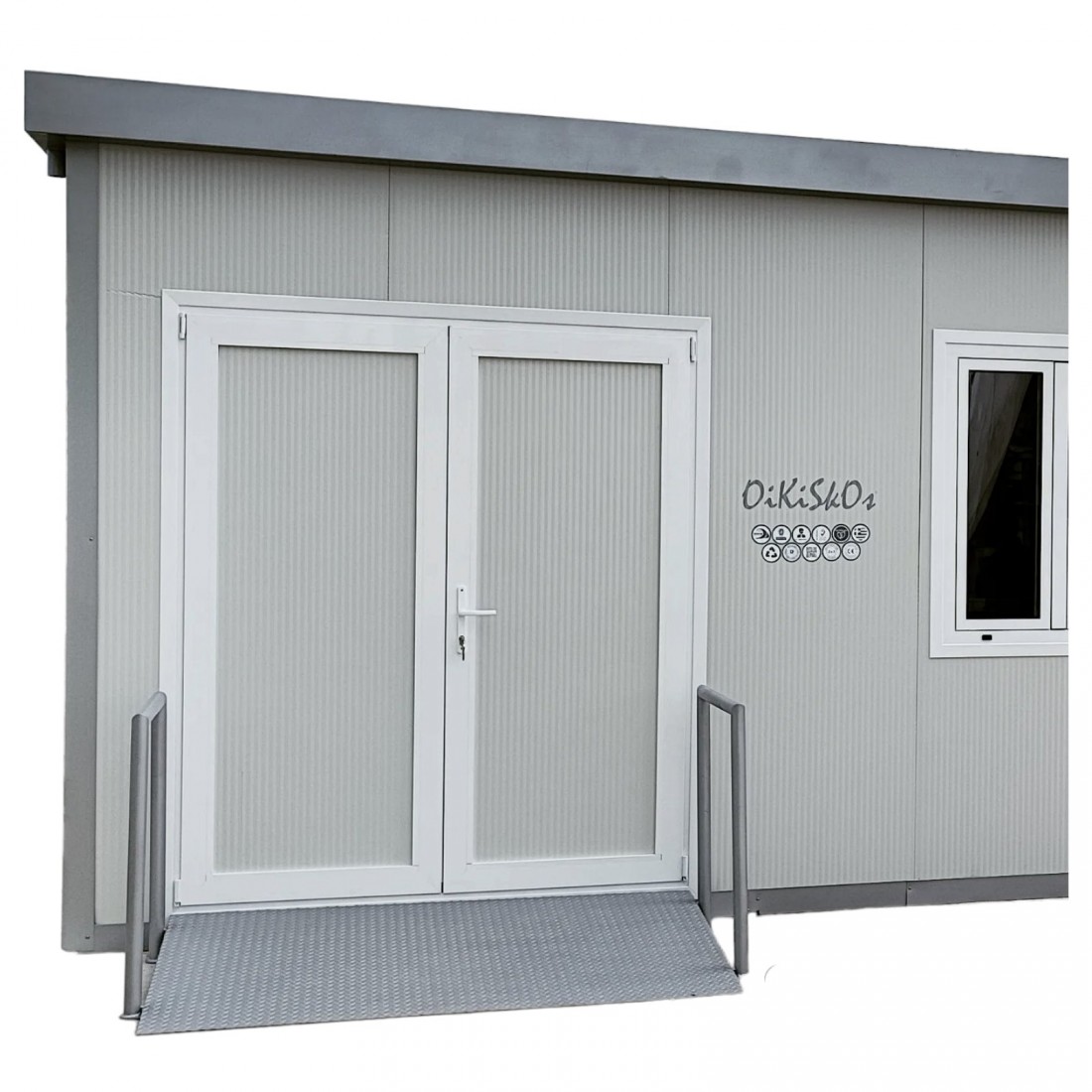

Metal entrance ramp

Some of the main reasons for using metal ramps include:

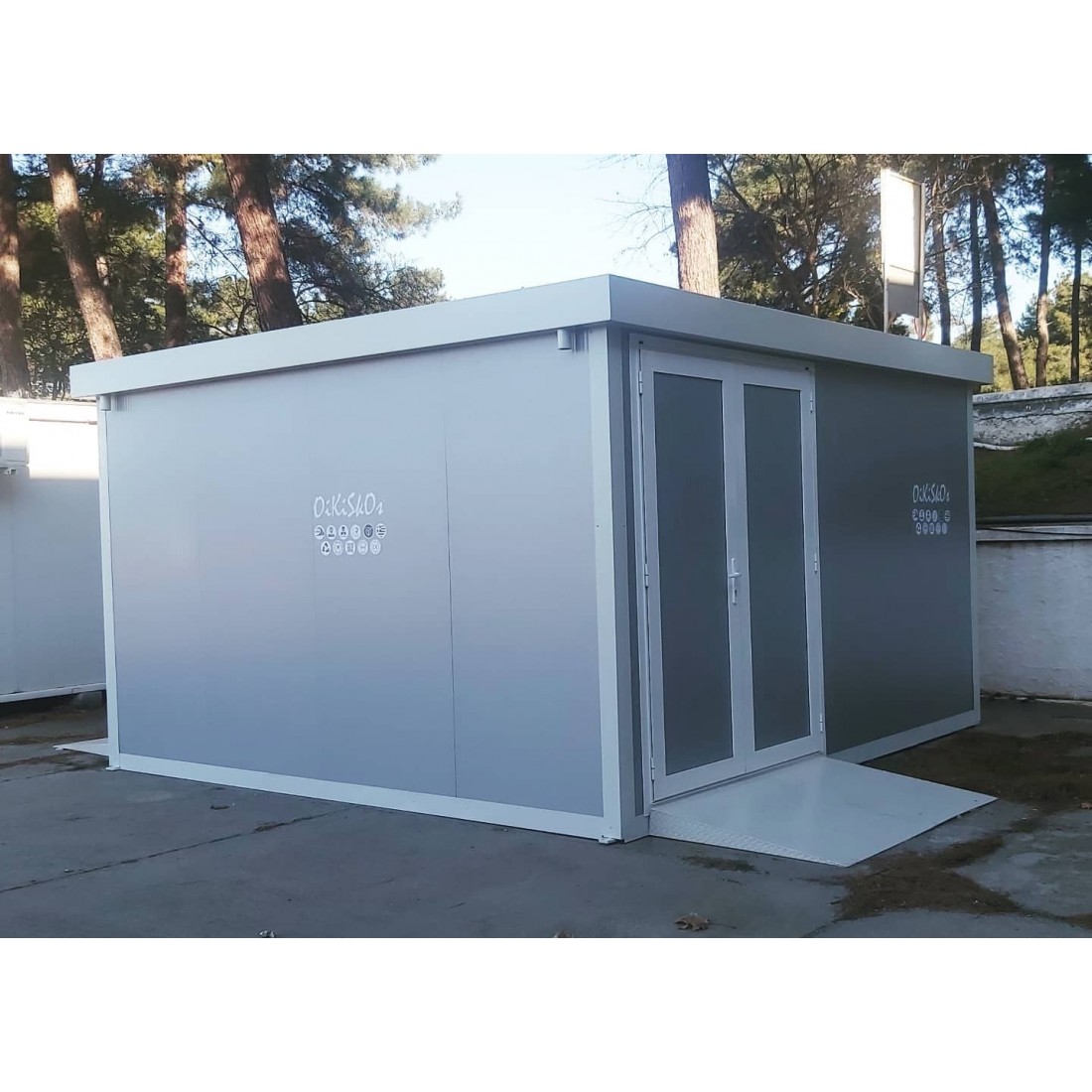

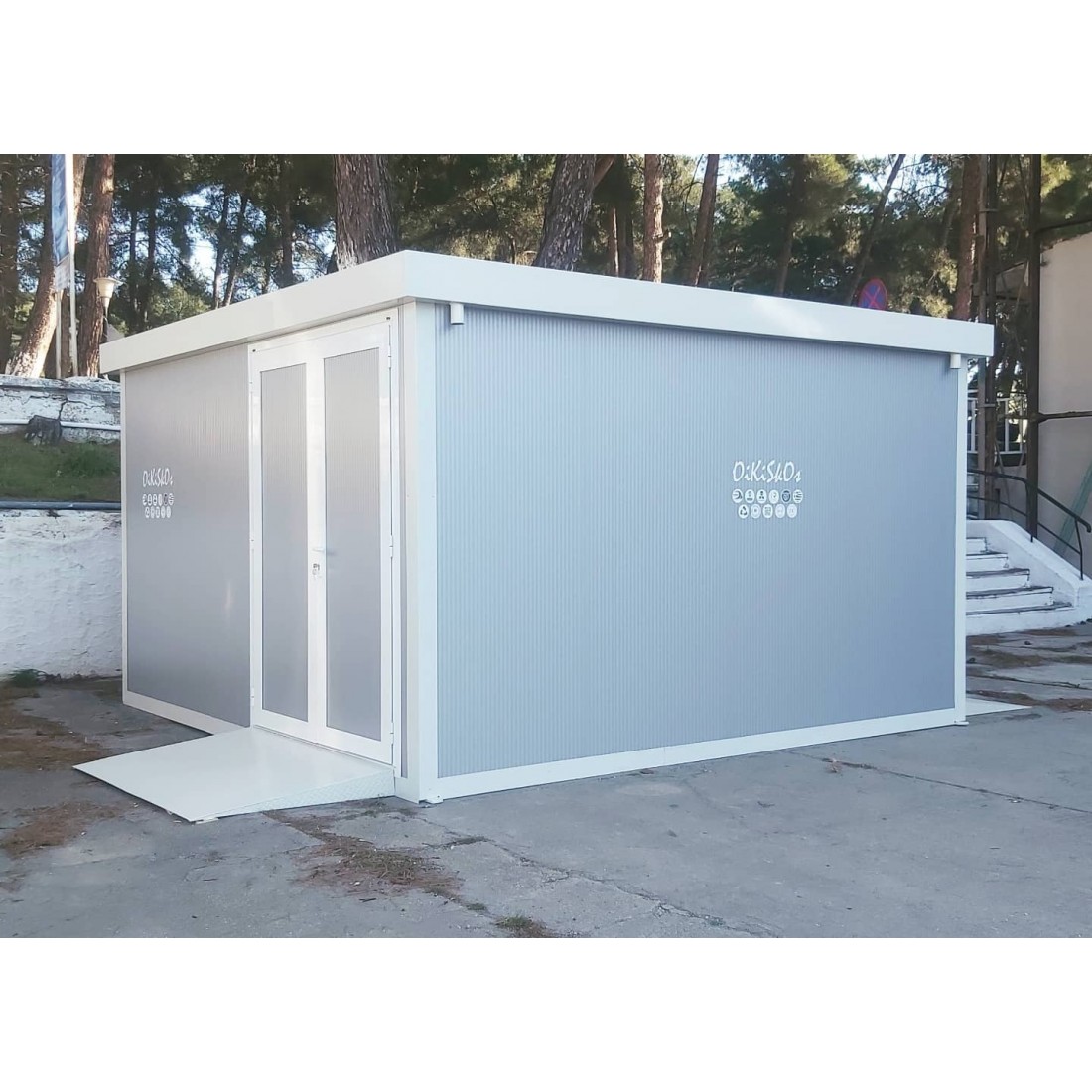

Ease of access: A metal ramp can be used to create easier access inside the kiosk, bridging the 12 cm height difference. This is particularly useful for people with reduced mobility or disabilities, as well as for the easy transport of items.

Replacement of steps: In the case of elevated kiosks on foundations, metal ramps can also be used to replace steps, providing a straight and safe passage from one level to another.

Mounting & Fixation

• The ramp is secured to the modular unit with two Φ16 holes and is connected using M14x140 hex bolts with double wide washers and nuts.

• At the rampbase, a plate with two Φ12 holes is anchored to the ground with M10x120 expansion bolts, washers, and nuts.

Technical Specifications

• Ramp width: 100 cm

• Security railing: All ramps with a height difference > 0.50 m are equipped with a security railing.

Ramp Heights Based on Base Elevation

• 0.12 m → for a 0.40 m base height

• 0.52 m → for a 0.40 m base height

• 0.92 m → for a 0.80 m base height

• 1.32 m → for a 1.20 m base height

• 1.72 m → for a 1.60 m base height

• 2.62 m → for a 2.50 m standard ground-floor unit

• 3.12 m → for a 3.00 m high cube ground-floor unit

• 5.24 m → for a 2.50 m standard ground-floor unit+ a 2.50 m standard first-floor unit

• 5.74 m → for a 3.00 m high cube ground-floor unit + a 2.50 m standard first-floor unit

• 6.22 m → for a 3.00 m high cube ground-floor unit + a 3.00 m high cube first-floor unit

Ramp Types

• Type I: Can be straight with corresponding handrails on either the right or left. (Typically recommended for ramps up to 1.32 m.)

• Type Γ: Can have a left or right direction with a handrail on one side, one landing, and one column. (Typically recommended for ramps ranging from 1.72 to 3.12 m.)

• Type Π: Can have a left or right direction with handrails on both sides, two landings, and two columns. (Typically recommended for ramps ranging from 5.24 to 6.24 m.)

Warranty

Choose the same warranty period as your oikiskos:

• Default: 1 year (extendable)

• Optional:

  • 1 year on-site (extendable)

  • 2 years (extendable)

  • 2 years on-site (extendable)

  • 3 years (extendable)

  • 3 years on-site (extendable)

  • 4 years (extendable)

  • 4 years on-site (extendable)

  • 5 years

  • 5 years on-site

Construction Time

Choose the same timeline as your oikiskos:

• Default: Based on production flow

• Optional: Fast Pass service for quicker delivery

Transport

• Delivered via curtain truck or flatbed truck

For ramps:

• 0.12 - 1.32 m requires 1.0 m truck bed length
• 1.72 m requires 4.0 m truck bed length
• 2.62 m requires 5.2 m truck bed length
• 3.12 m requires 6.0 m truck bed length
• 5.24 m requires 5.2 m truck bed length
• 5.74 m requires 6.0 m truck bed length
• 6.22 m requires 6.0 m truck bed length

• The shipping cost is calculated automatically at checkout, or it can be added manually by checking the locations of the technical support points hereto include an additional material transportation service.

CO2 Offset Options

• Default: 100% offset

• No offset

• 50% offset

Material Lifting

• Unloading can be done via forklift or crane

• If obstacles exist (trees, fences, cables), a larger crane is required

• Send a sketch/photo for accurate lifting calculations

• An initial setup is required, and

  For ramps:

  • 0.12 - 1.72 m requires 1 hour of work

  • 2.62 - 3.12 m requires 2 hours of work

  • 5.24 - 6.22 m requires 3 hours of work

Installation:

The ramp installation in the prefabricated unit is carried out by two skilled technicians.

Installation is not included in the prices. You can purchase the service of "Removing and/or installing a metal stair / ramp" here.

Required work time:

For ramps:

• 0.12 - 1.72 m requires 1 hour of work

• 2.62 - 3.12 m requires 2 hours of work

• 5.24 - 6.22 m requires 3 hours of work

Find here support locations to add the "Personnel Transport" option.

For island projects, please add:

• "Personnel transport by ferry"
• "Vehicle transport by ferry"
• "Truck transport by ferry"

Have a look here if accommodation is required, add "Personnel lodging and meal expenses".

Power Supply for Installation:

A power supply is required for installation. If there is no connection to the grid, a generator ιs available at an additional charge.

Dimensions:

All listed dimensions are in Length × Width × Height.

Images may not accurately reflect the actual color of the products.

Not sure what you need? Purchase a Phone Support Package, and we will help you design your new ramp!
