Oikiskos Aluminium Door

External Doors

The doors are of ELVIAL series 2000, filled with a 40 mm thermal insulation panel, color-matched with the kiosk’s shell.
The external panel surface features a Mini Nevratura finish in RAL 9002 or RAL 9006, while the interior surface is Classic in RAL 9002.

As an alternative, the entrance door can be supplied with:

• Double glazing 4/16/4 (Uw: 1.30 W/m²K, or 1.10 W/m²K with argon gas filling), or

• Half panel / half glazing configuration.

For enhanced thermal insulation, doors with thermal break are available in ELVIAL series 4600 or W59.

⚠️ Note: A minimum panel thickness of 60 mm is required to install thermally broken doors.

Watertightness and acoustic insulation of the doors are achieved using rubber gaskets and polypropylene brushes.
All profile connection accessories are made of aluminum or plastic, and all screws used for frame assembly and fittings are stainless steel.

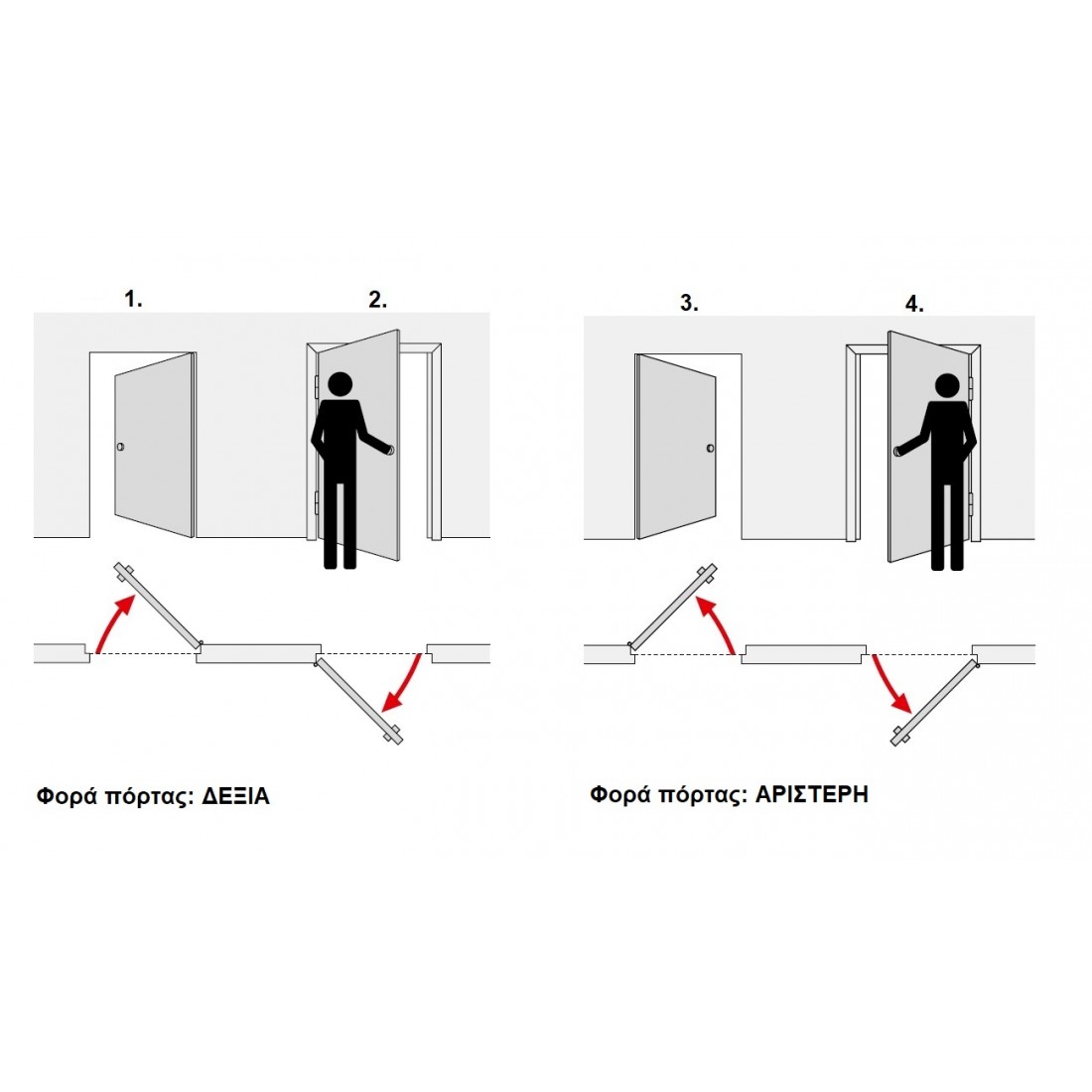

Door Opening Direction

Please specify the desired door swing direction based on the reference image provided.
If no option is selected, the default is Type 3.

Dimensions & Types

Single-Leaf Doors:

• 0.70 × 2.10 m

• 0.80 × 2.10 m

• 0.90 × 2.10 m

• 1.00 × 2.10 m (standard & disabled access)

Double-Leaf Doors:

• 1.20 × 2.10 m

• 1.60 × 2.10 m

• 2.00 × 2.10 m

• 2.50 × 2.10 m

Color Options

• RAL 9010 (White)

• RAL 9006 (Silver)

• RAL 7015 (Grey)

Glass Types (if glass door or half-glass is selected)

• Standard 4/12/4 Energy-Efficient

• Standard 4/12/4 Energy-Efficient Sandblasted

• Tinted (Dark) 4/12/4 Energy-Efficient

• Stop SOL (Mirror) 4/12/4 Energy-Efficient

• Triplex 3+3/10/4 Energy-Efficient

• Triplex 3+3/10/4 Energy-Efficient Sandblasted

• Triplex 3+3/10/4 Energy-Efficient Tinted

• Triplex 3+3/10/4 Energy-Efficient Sandblasted Stop SOL Mirror

Thermal Insulation Options

• 40 mm shell panel + aluminum frames without thermal break + double thermal insulating glazing

• 60 mm shell panel + aluminum frames with thermal break + double energy-efficient glazing

• 100 mm shell panel + aluminum frames with thermal break + argon-filled double energy-efficient glazing
