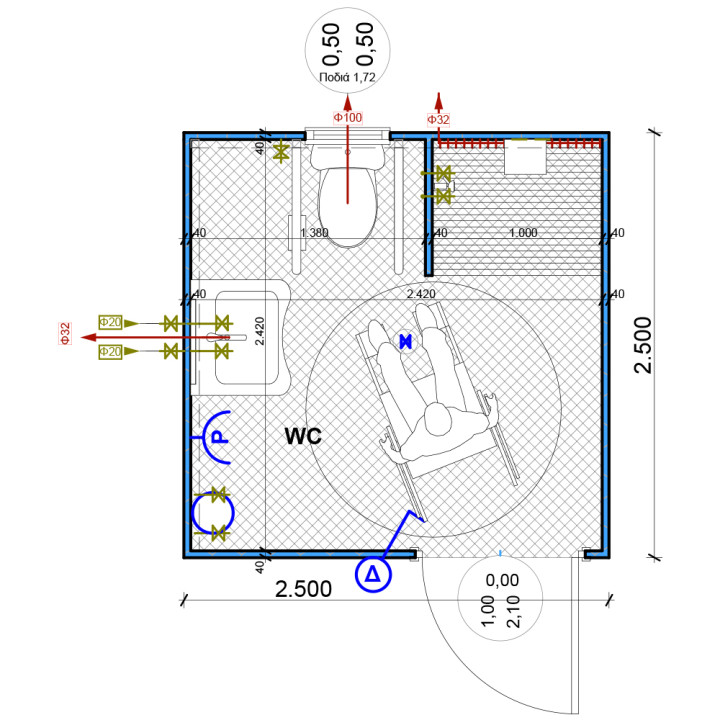

Technical Description of WC Module
WC Equipment
The WC includes porcelain sanitary ware:
- European-style toilet bowl for Disabled
- 2 Metal retactable arms with toilet paper holder
- Toilet brush and waste bin
- Porcelain pedestal sink with faucet
- Towel hook
- Porcelain shower tray with curtain or οπtional cabin
- Shower faucet and additional towel hook
Mirrors
- Standard mirror 500 x 600 x 3mm
- Magnifying mirror
Plumbing Installation
- Heat-welded pipes made of cross-linked white polyethylene
- Cold & hot water supply points: Side-mounted, ½'' male fittings
Electrical Upgrades
- Lighting: 1 LED bulkhead light
- Electrical fittings: 1 single switch and 1 power outlet
Wall & Frame Construction
- Walls: 40mm polyurethane panel
- Special metal trim covers where required
- Aluminum frames:
- Internal metal door with panel (1.00 x 2.10 m)
- External window (0.50 x 0.50 m), tilt-and-turn
- Mounted on an aluminum subframe
- Available frame colors:
- White RAL 9002 (Standard model)
- Silver RAL 9006 (Elegant model)
- Grey RAL 7015 (Premium & Executive Model)
Water Heating (Optional)
- Water heater 40-60-80-100 liters
- Solar water heater 120 liters
- Instant water heater approx. 9 kW
WC Cooling- Heating (Optional)
- Electric towel warmer
- Electric fan heater with towel warmer
- Air conditioning unit 9000 BTU (pre-installation)
WC Ventilation (Optional)
Electrical Supply
- 3 x 4 mm² power line for water heater & Circuit breaker B20 NA
- 3 x 2,5 mm² power line for WC cooling - heating system & Circuit breaker B16 A
- Small installation materials included
WC Equipment (Optional)
- Vanity light
- Shelving unit
- Cup holder
- Soap Dish
- Fixed mosquito net
- Window security grill
- Clothes rack
- Baby changing table
- 9000 BTU air conditioner
- Waste water pump for WC
- Automatic sink faucet
Warranty:
Choose the same warranty as your modular building:
- Default: 1 year, extendable.
- Optional:
- 1 year on-site, extendable.
- 2 years, extendable.
- 2 years on-site, extendable.
- 3 years, extendable.
- 3 years on-site, extendable.
- 4 years, extendable.
- 4 years on-site, extendable.
- 5 years.
- 5 years on-site.
Construction Time:
Choose the same option as for your modular building:
- Default: Based on production flow.
- Optional: Fast Pass service for quicker delivery.
Offsetting estimated CO2 emissions (Optional)
- Offset of 100% of estimated CO2 emissions (preselected option)
- No compensation for estimated CO2 emissions
- Partial offset of 50% of estimated CO2 emissions
Installation & Dismantling Work
For new modules
✔ Installation is included in the product price
For existing modules
Installation:
- 6 hours for a plumber
- 1 day for a technician
Dismantling:
- 3 hours for a plumber
- 4 hours for a technician
In all cases, the "personnel transportation" service is required.
