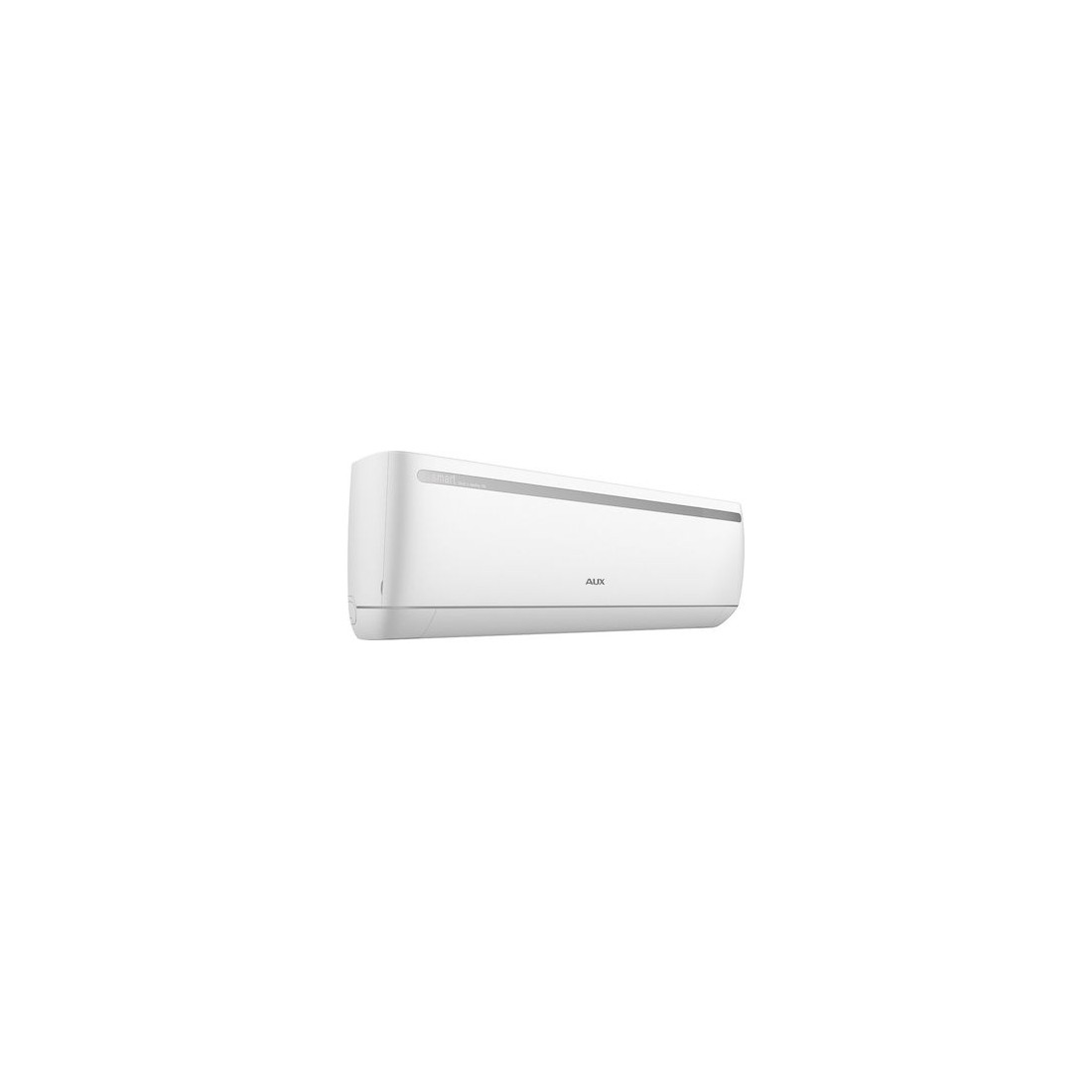

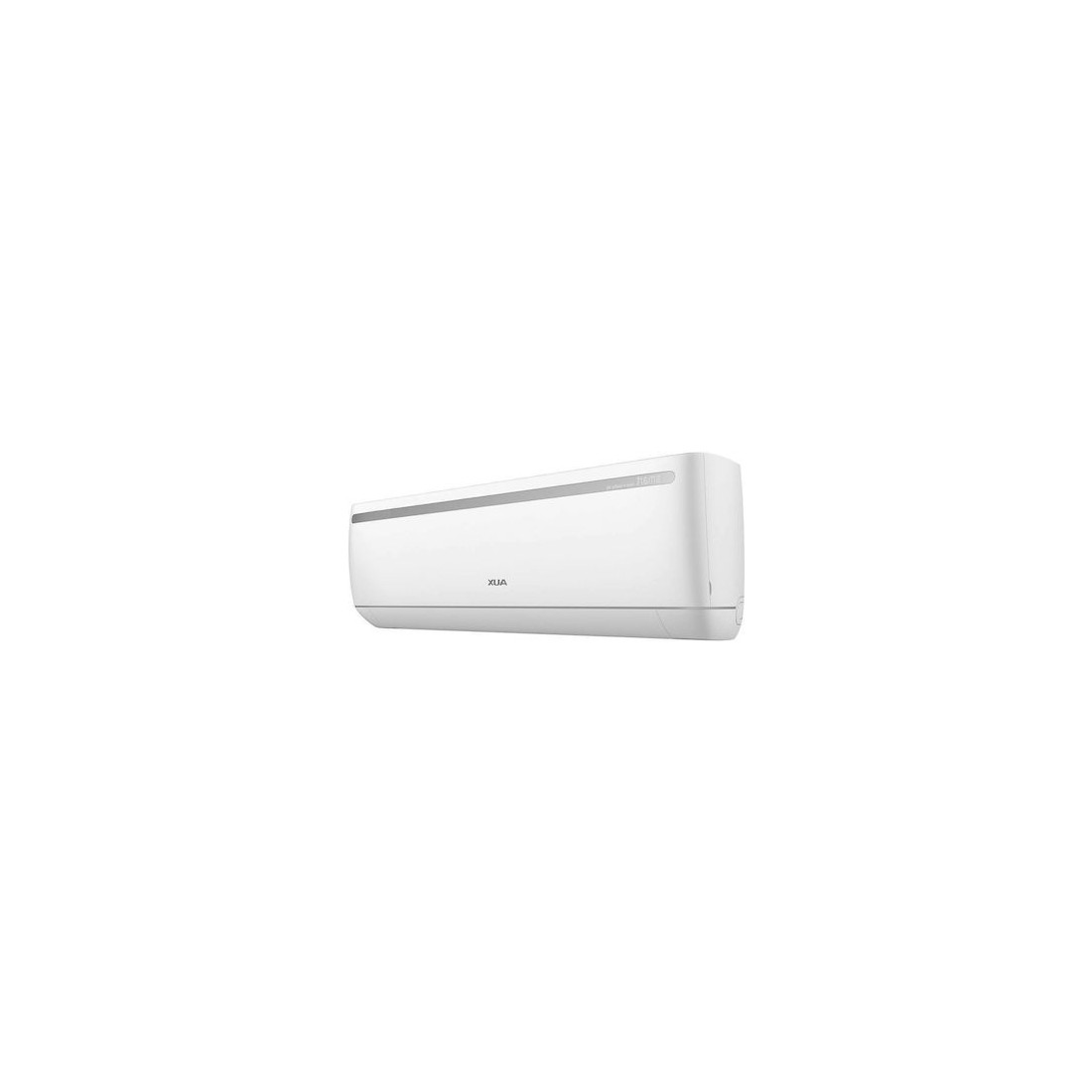

Description

The J-SMART series is characterized by ease of installation, use, and maintenance of the air conditioner. It combines the comfort offered by technology with reliability and high performance.

Operation in extreme conditions (-20˚C ~ 60˚C)

The innovative two-stage Compression system (EVI) combined with the Cooling System optimization technology and high-quality materials, ensures the most reliable operation even in the most extreme temperature conditions (heating at -20˚C and cooling at 60˚C).

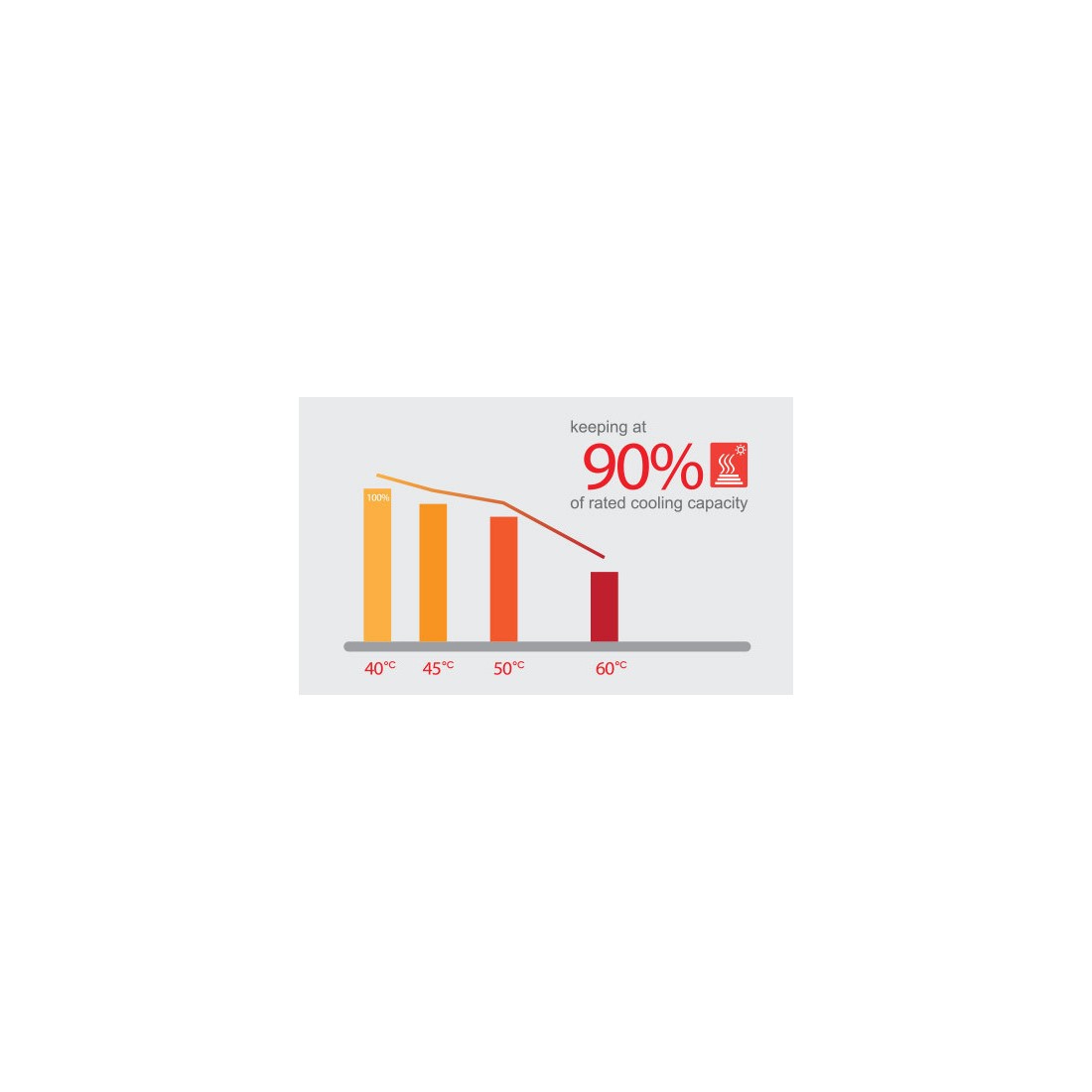

Low Cooling Loss

Under extreme heat conditions, the cooling performance of the unit does not decrease significantly, maintaining 90% of its nominal performance.

WiFi Control 2.0

Combine the comfort offered by technology with reliability and high performance. The new J-SMART series is characterized by ease of installation, use, and maintenance of your air conditioner.

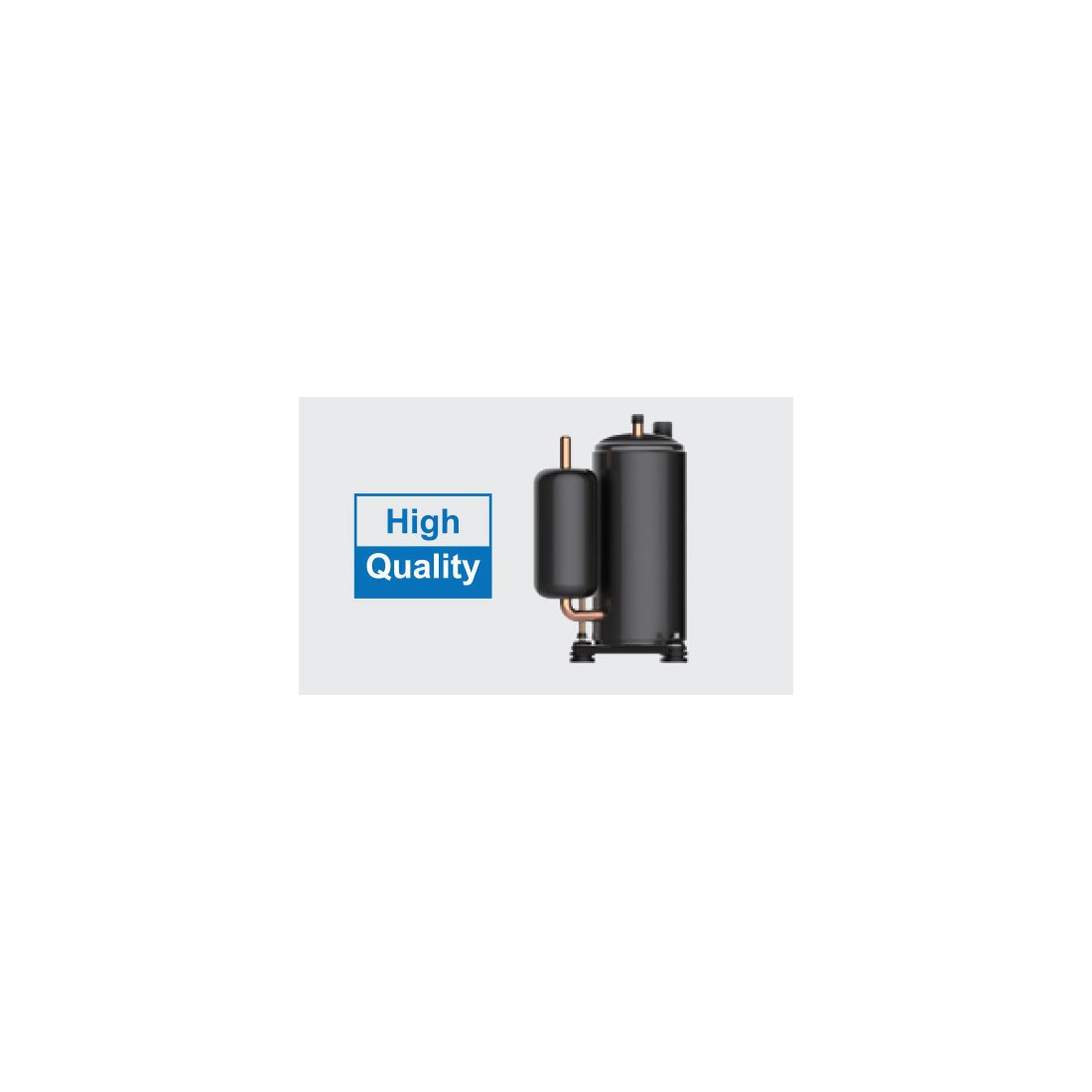

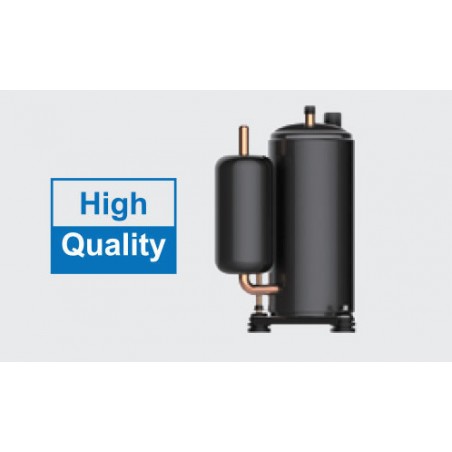

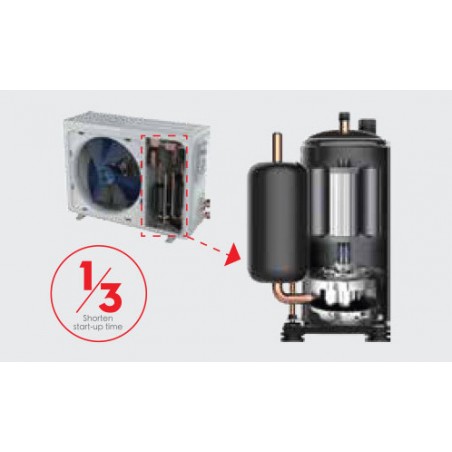

High-quality compressor

The high-quality compressor ensures optimal performance in all functions.

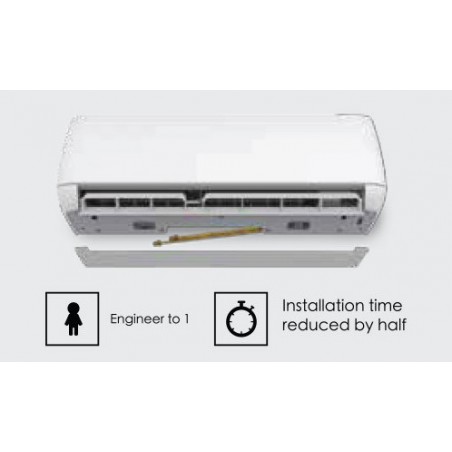

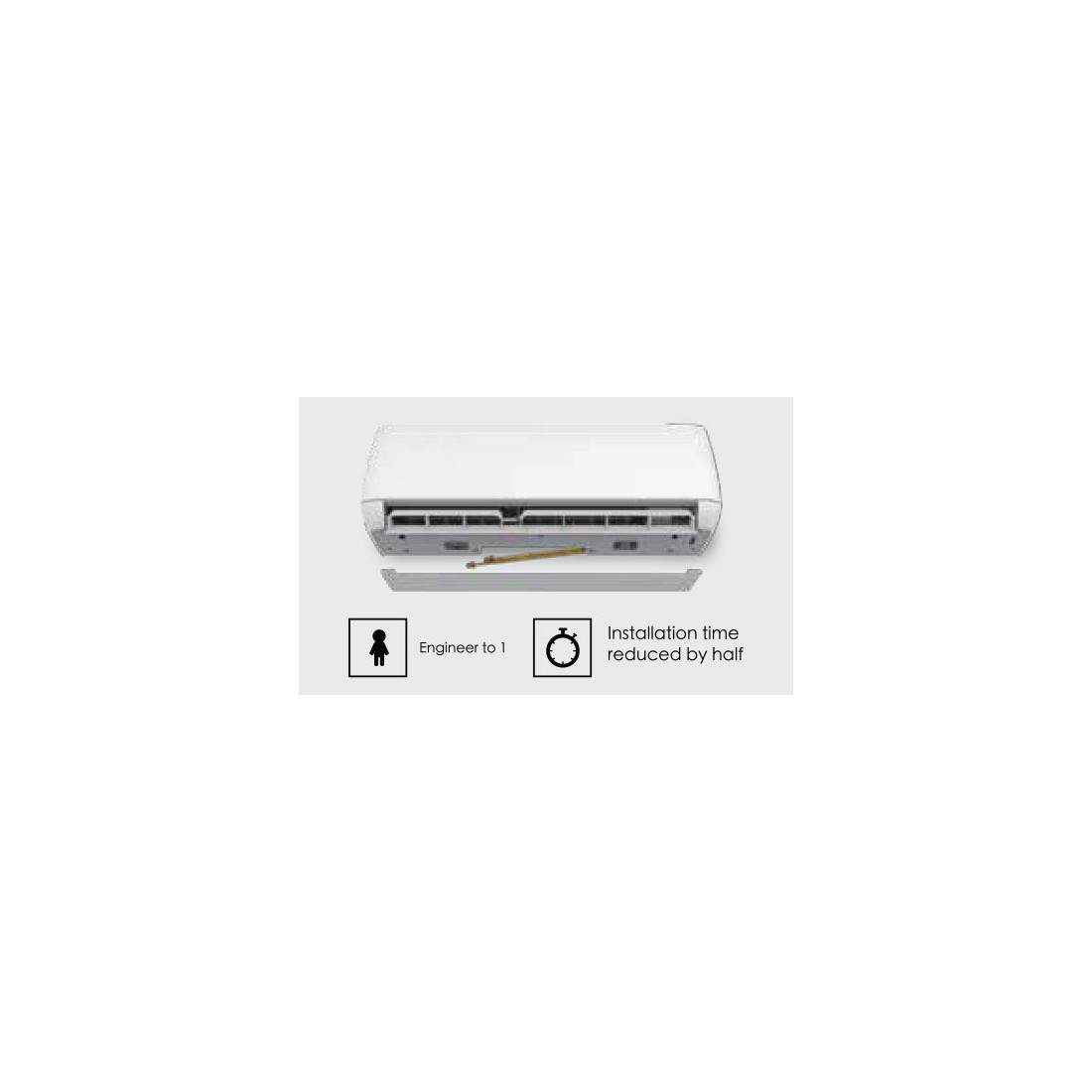

Easy installation

The AUX patent for easy disassembly of the indoor unit base ensures a reduction in installation time by half, even by a single person.

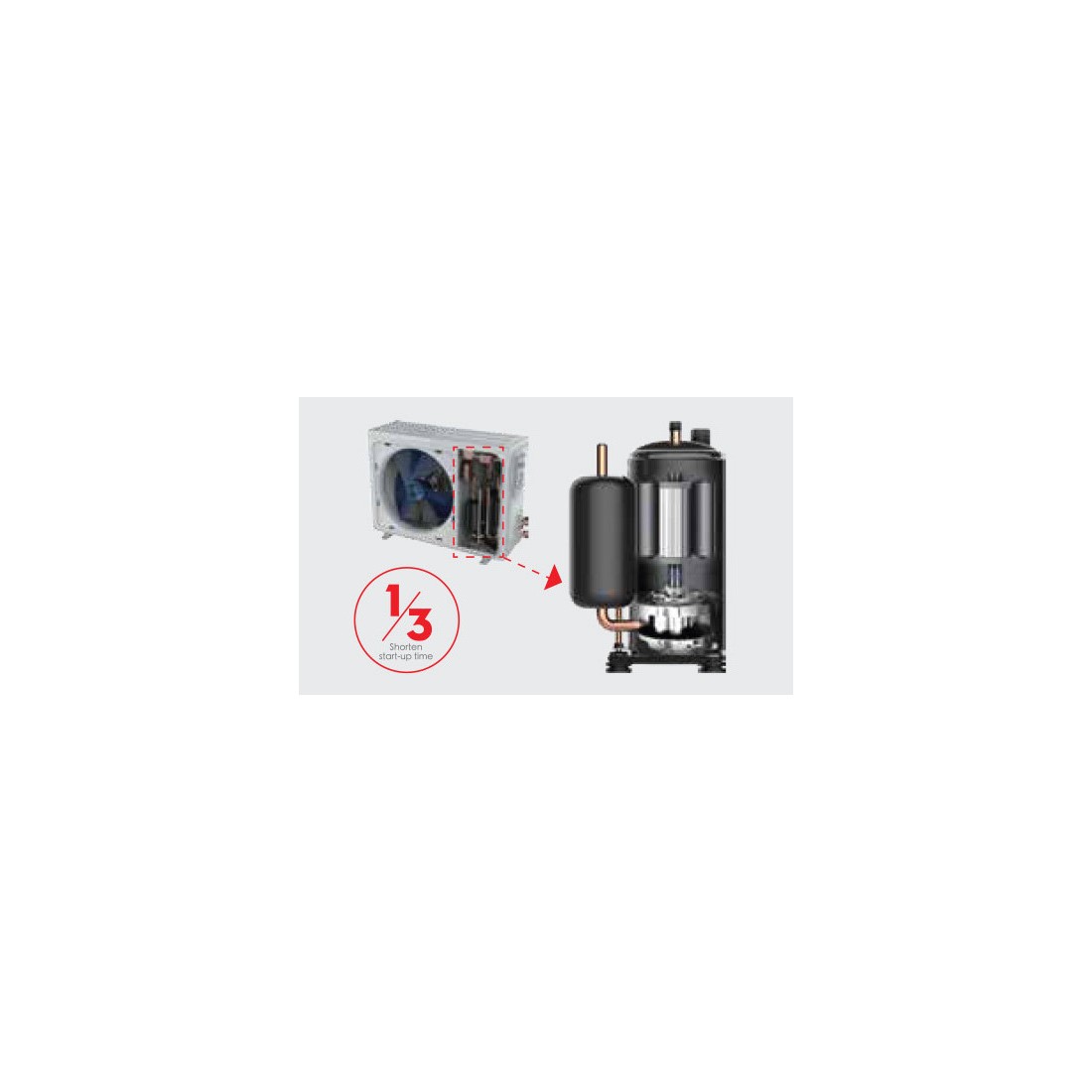

Quick Cooling in 30’’ / Heating in 1’

The compressor speed reaches 3900 r/min in 30 seconds. The rapid passage of the refrigerant achieves quick cooling in 30 seconds and immediate heating in 1 minute, instantly creating the appropriate temperature conditions in the space.

Eco-Friendly Refrigerant R32

It uses the eco-friendly refrigerant R32, which is environmentally friendly and has 68% lower global warming potential compared to R410A. Additionally, R32 can deliver the same thermal power as R410A with 30% less refrigerant, meaning that less refrigerant is required per unit. As a result, total carbon dioxide emissions can be reduced by approximately 75%. Another advantage is that R32 is not a mixture but a homogeneous fluid and can be more easily recycled and reused.

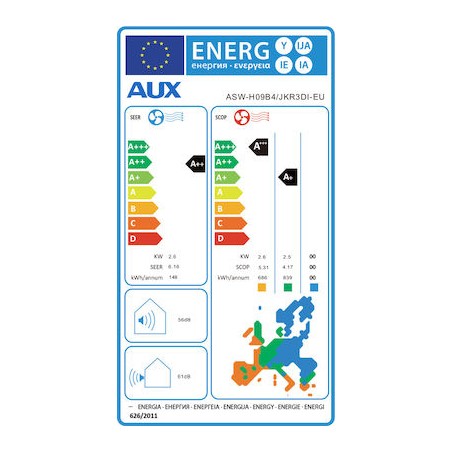

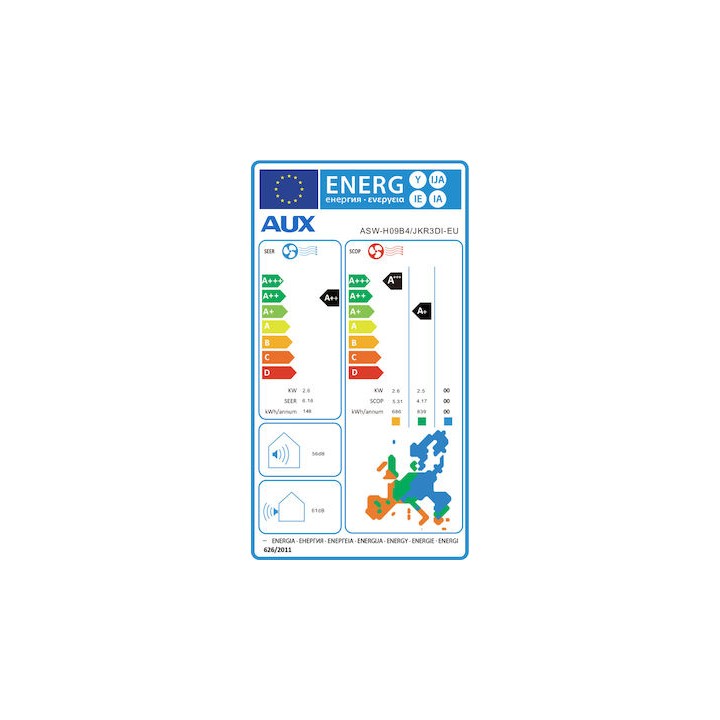

Energy Efficiency

The air conditioner belongs to energy class A++ for cooling and energy class A+ for heating (medium zone). The energy class is measured on a seven-level color scale from A+++ to D, with class A+++ being the most efficient, while class D is the least efficient.

Additionally, there are the SEER and SCOP indicators, which more realistically depict the actual energy efficiency of air conditioners.

SEER (Seasonal Energy Efficiency Ratio) is representative for the entire cooling season. It is defined as the ratio of the annual required cooling to the annual electricity consumption (the annual cooling consumption is based on 350 hours of operation). Indicatively, for an air conditioner of class A and above, the SEER index is from 5.10w/w units and above.

SCOP (Seasonal Coefficient of Performance) is representative for the entire heating season. It is defined as the ratio of the annual required heating to the annual electricity consumption (the annual heating consumption is based on 1400 hours of operation). Indicatively, for an air conditioner of class A and above, the SCOP index is from 3.40w/w units and above.

Manufacturer

AUX - Air Conditioners AUX

Specifications

Product NumberASW-H09B4/JKR3DI-EU

Performance

Nominal Output:9000 BTU

Cooling Power:8871 BTU

Heating Power:8530 BTU

Features & Functions

WiFi:Yes

WiFi Ready:No

Air filters:No

Ionizer:Yes

Eco Friendly Refrigerant (R32):Yes

Colour:White

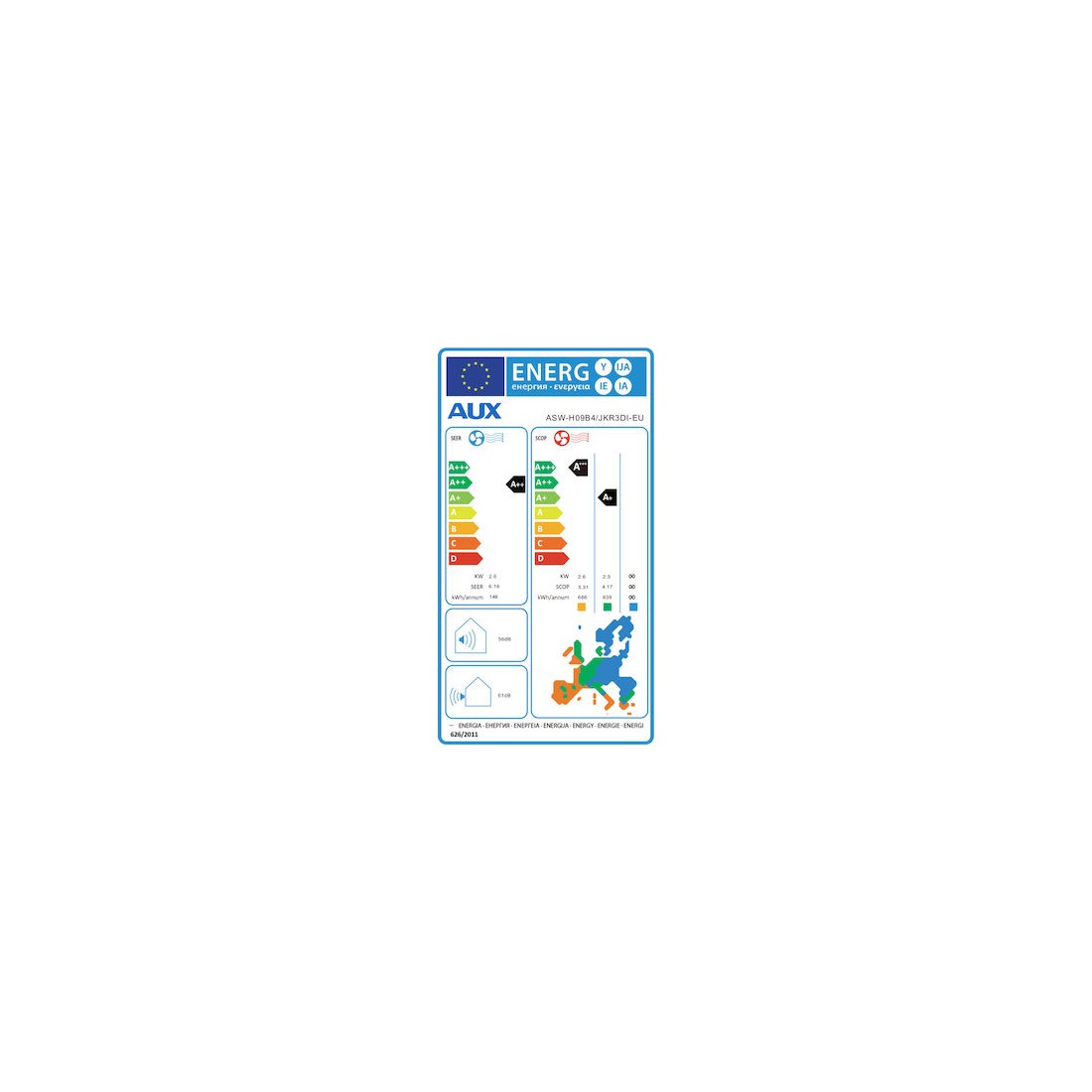

Energy Class

Cooling:A++

Heating (Middle Zone):A+

Seasonal Energy Efficiency Ratio (SEER):6.16 W/W

Seasonal Coefficient of Performance (SCOP):4.17 W/W

Cooling Consumption:148 kWh/y

Heating Consumption:839 kWh/y

Noise Power

Indoor Unit:56 dB

Outdoor Unit:61 dB

Physical Dimensions

Indoor Unit Length:75 cm

Indoor Unit Height:28.5 cm

Indoor Unit Depth:20 cm

Outdoor Unit Length:72 cm

Outdoor Unit Height:54.5 cm

Outdoor Unit Depth:25.5 cm

Commercial Warranty

Manufacturer's Limited Warranty4 years For all electrical and mechanical parts, 10 years For the compressor

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
