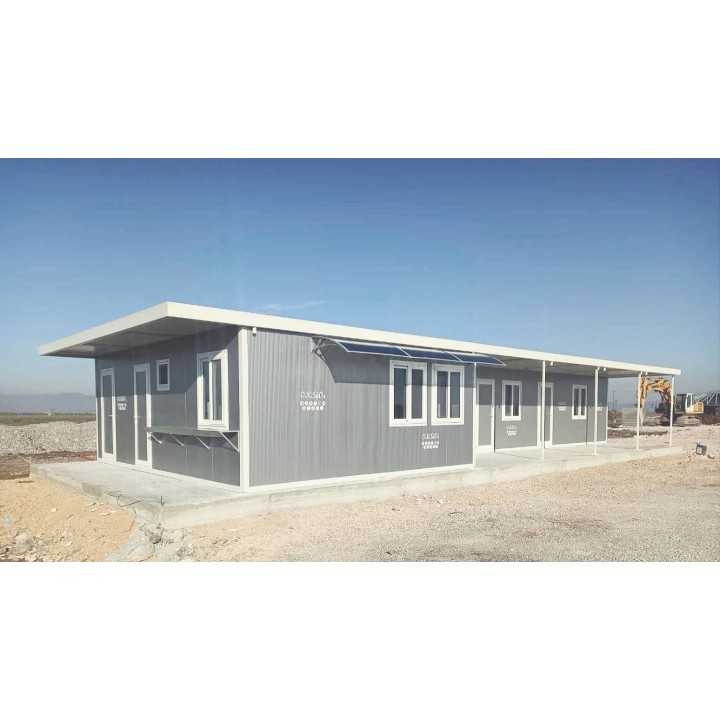

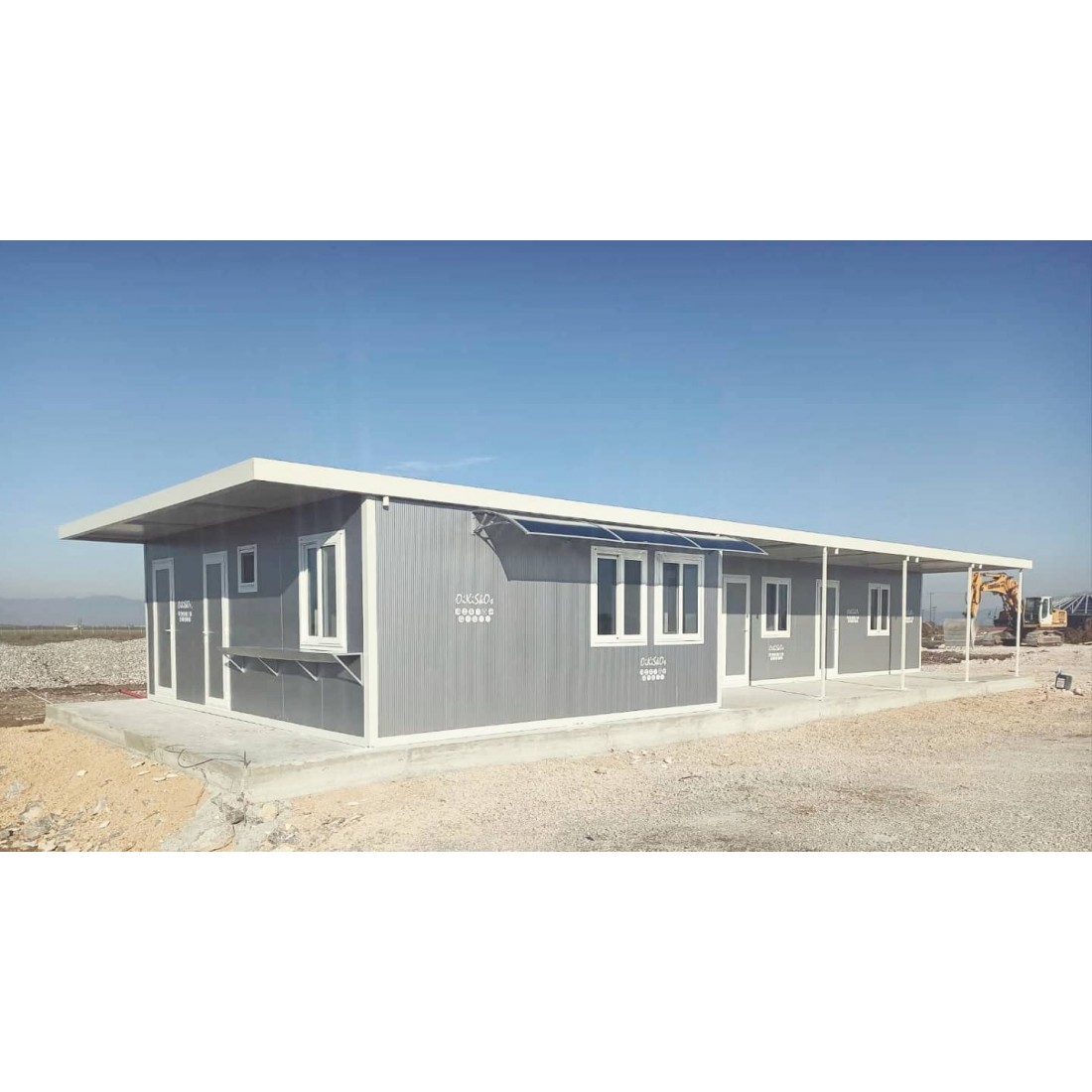

Roof Extension Canopy Without Support Columns per m2

A canopy with a roof extension without columns offers several advantages:

• Aesthetics: The extension of the roof without columns results in cleaner and more streamlined lines, creating a more modern and attractive appearance for the housing unit. The absence of columns allows the exterior space to appear more open and free.

• Ease of Cleaning and Maintenance: Without columns, there are no additional points that complicate cleaning and maintenance of the exterior space. The area under the canopy is more open and easily accessible for upkeep.

• Simplified Construction and Installation: The construction of the canopy without columns is quicker and does not require separate installation work, as the canopy is transported and delivered attached to the housing unit.

• Space and Functionality: Without columns that limit space, the canopy allows for more free area underneath, offering greater flexibility in utilizing the exterior space without obstacles.

• Weather Protection: It offers protection from rain and sun, providing more comfort at the entrance of the housing unit and reducing the amount of water that windows or doors are exposed to.

• Natural Light: Its opaque construction creates shade inside the housing unit, keeping the space cool.

• Aesthetics: The canopy can enhance the aesthetic appeal of the housing unit.

• Durability: The canopy is resistant to weather conditions and solar radiation and does not require maintenance.

Overall, it provides protection, shading, and aesthetic enhancement, while being durable and timeless in use.

Specifications

Dimensions:

The canopy can be manufactured to the desired dimensions with the following limitations:

• Length: Up to the maximum length of the side of the housing unit where it will be installed.

• Width: Up to 1 meter (including the gutter).

Availability: The product is not readily available. It is manufactured upon order.

Height: The canopy will be installed flush with the roof of your housing unit.

Frame: The canopy does not have a metal frame.

Roof Type: The canopy will be horizontal, single-pitched, or double-pitched. Choose the type that matches your housing unit.

Panel Thickness & Type: Same as the roof of the housing unit.

Gutter: 200x100x2 mm gutter on open sides.

Color: Roof panel in RAL 9002 & gutter in the color of the housing unit's gutter (White RAL 9002 - Silver RAL 9006 - Gray RAL 7015).

Electrical Installation

• Default: Without electrical installation.

• Optional: Extension of the electrical installation for strong currents, without pre-drilled frame, consisting of one LED ceiling light per 3 m², a single switch, and a power outlet. Cable routing in plastic conduits.

Logos:

The same option as selected for your housing unit will be applied.

• Default: Painted logos on the gutter on all sides of the housing unit.

• Optional: Without logos.

Warranty:

Choose the same warranty as your housing unit.

• Default: 1 year with the possibility of extension.

• Optional:

  • 1 year on-site with the possibility of extension.

  • 2 years with the possibility of extension.

  • 2 years on-site with the possibility of extension.

  • 3 years with the possibility of extension.

  • 3 years on-site with the possibility of extension.

  • 4 years with the possibility of extension.

  • 4 years on-site with the possibility of extension.

  • 5 years.

  • 5 years on-site.

Manufacturing Time:

Choose the same height as selected for your housing unit.

• Default: Based on production flow.

• Optional: You can choose the Fast Pass service for faster delivery.

Transportation: If the total width of the housing unit and the canopy together is more than 2.50 m, then you should choose special transportation for your housing unit.

Lifting: Not required separately. The canopy is delivered installed on the housing unit.

Installation: Not required. The canopy is delivered installed on the housing unit.

CO₂ Emission Offset

• Default: 100% offset of estimated CO₂ emissions.

• Optional:

  • Without offset.

  • Partial offset of 50% of estimated CO₂ emissions.

Please note that this is a medium-type canopy and can withstand significant wind or snow loads. On the other hand, the canopy with columns offers greater resistance to extreme weather conditions, such as strong winds or heavy snowfall, due to the additional support. The choice between the two depends on the needs of the space and the climatic conditions in the area.
