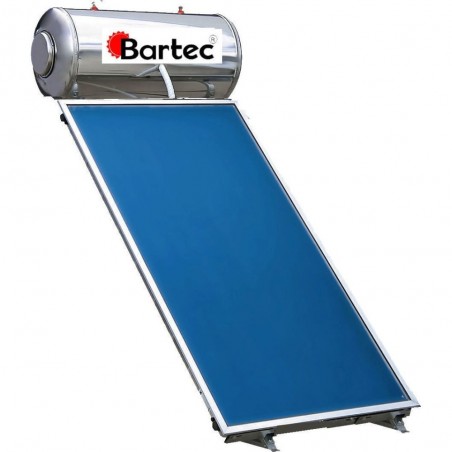

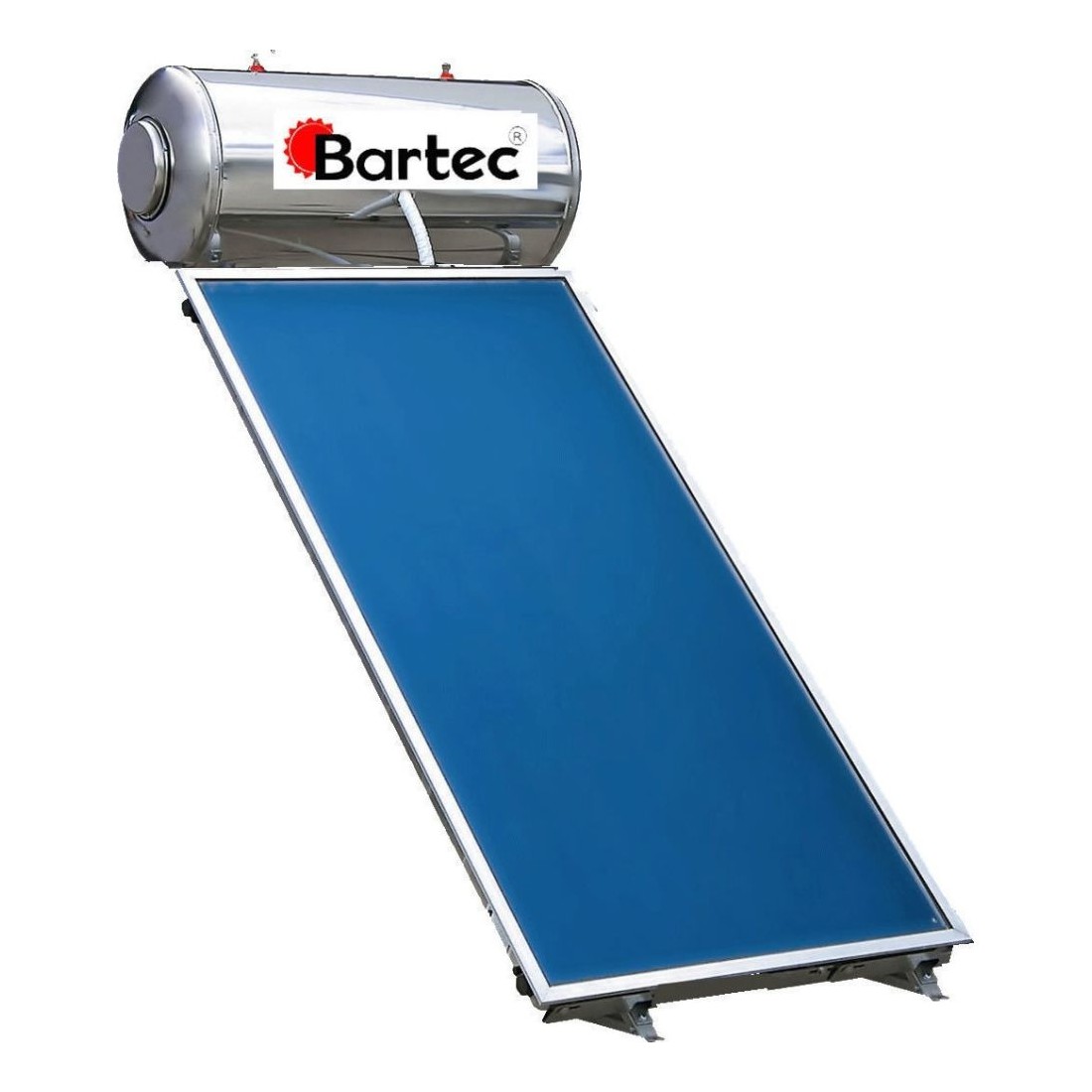

Bartec Solar Water Heater 150L 2.5 m2 Dual Energy Premium Rooftop

Technical Specifications

• Inner Tank: Made of enameled steel sheet, baked at ~830°C with liquid enamel, according to the German DIN 4735 standard.
• Electric Resistance: Mounted on a flange with a diameter of 140mm and eight (8) holes.
• Adjustable Thermostat: With a dual safety circuit.
• Outer Casing: Made of stainless steel (Inox) or PPG steel in gray color.
• Ethylene Glycol: Used for filling the closed circuit.
• Safety & Non-Return Valve.
• Cathodic Protection: With a magnesium anode (Periodic replacement required).
• Available Capacities: 100L, 120L, 150L, 200L, 300L.
• Galvanized Metal Base: Suitable for installation on a flat roof or tiled roof.
• Available Types: Dual Energy or Triple Energy.
• Power: 4000 watts.
• Collector Surface Area: 2.5 m².
• Number of Collectors: 1.
• Capacity: Suitable for 3-4 people (150-160L).
• Installation: Rooftop.
